PRODUCTS

Piezoelectric Device

Piezoelectric Sensor technology

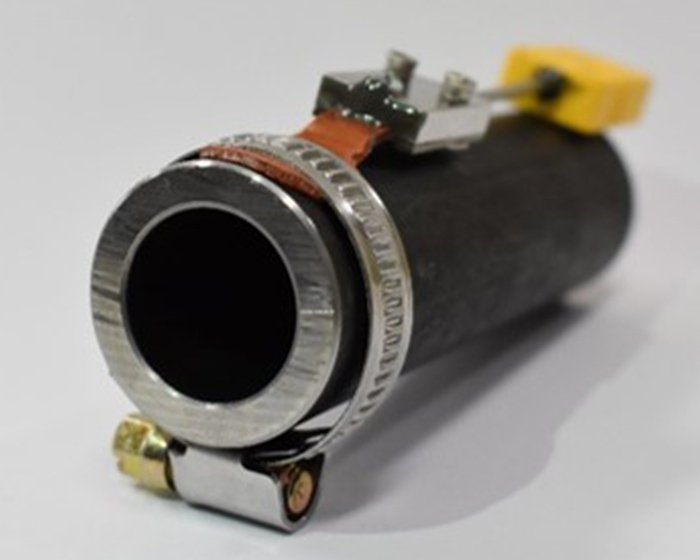

Heat resistant and flexible ultrasonic sensor

FEATURE

Flexible ultrasonic transmission and reception sensor with a thickness of 1mm or less that can be used frequently at temperatures of 600°C.
Provides a system for long-term monitoring of line thickness changes (thickness reduction) at multiple locations, including high-temperature lines.

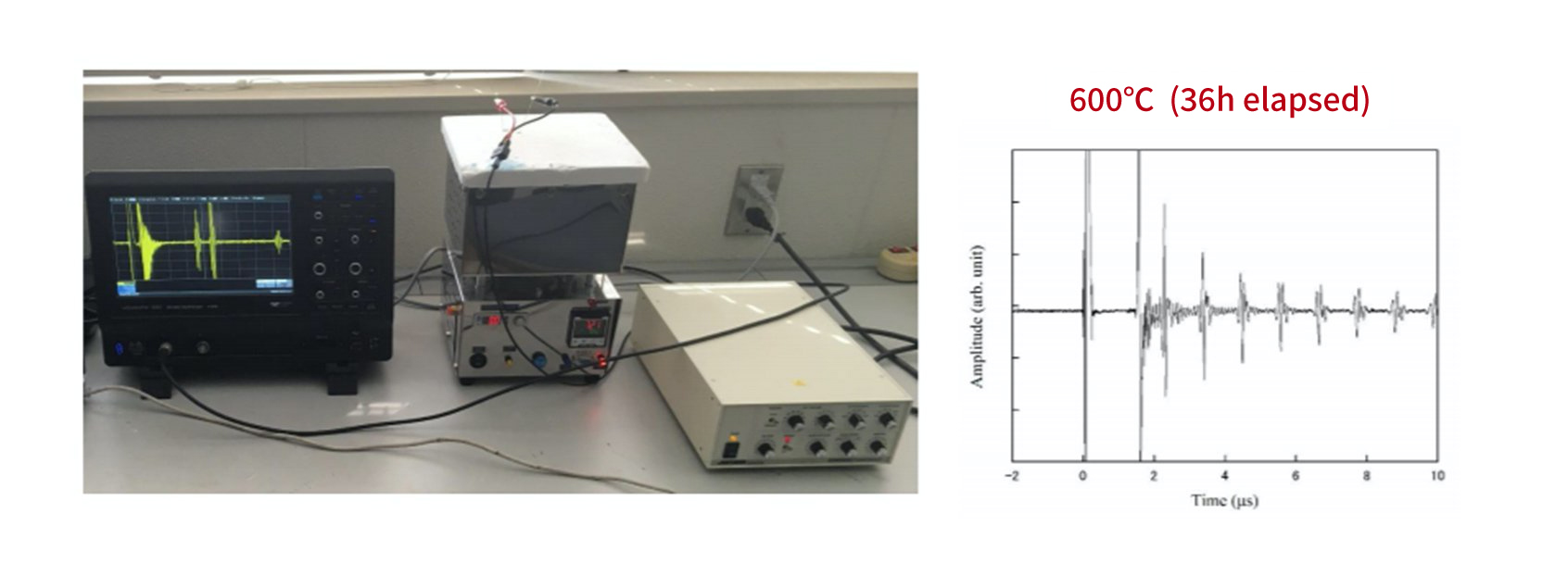

600 ℃ / 36 hours continuous Ultrasonic pulse echo to thickness measurement etc.

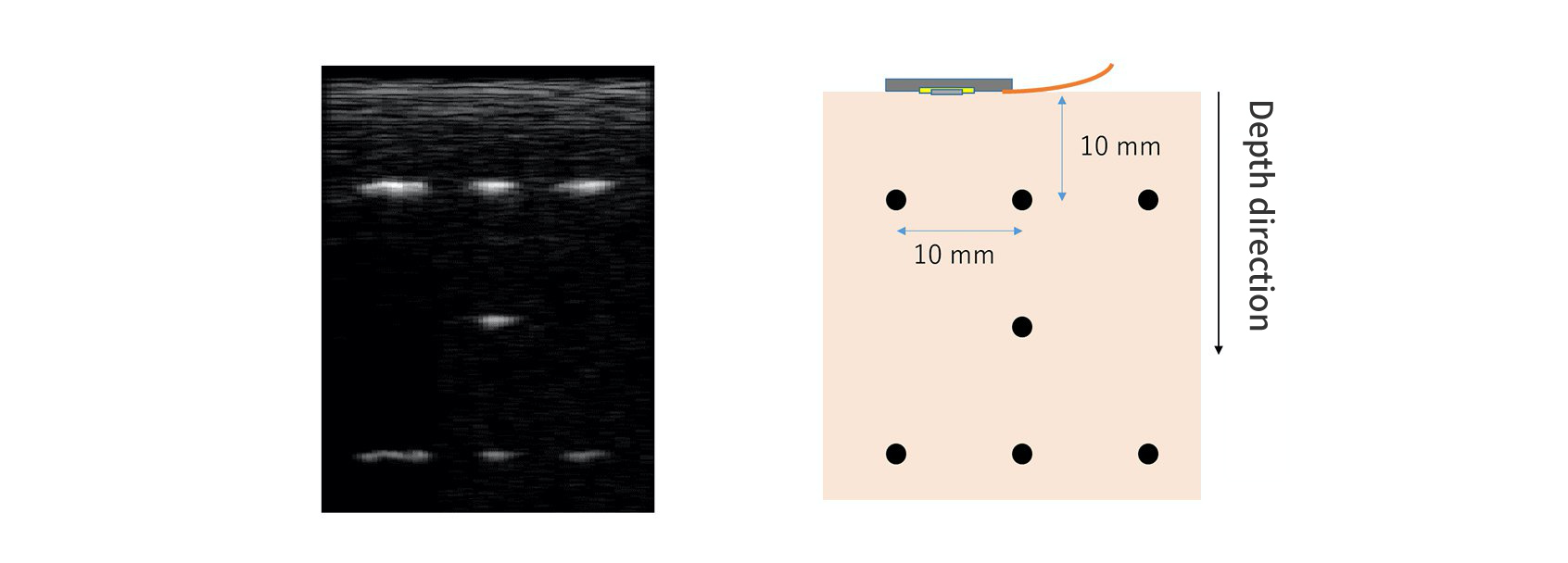

Image in organism simulative phantom by ultrasound echo (Kyoto Kagaku Multipurpose Phantom (String Target))

SPEC
Specifications

Model Heat resistant and flexible ultrasonic sensor
Heat proof temperature 100~600℃
Center frequency 2~50MHz
Measurable parts thickness 1mm
Flex resistance radius 10mm

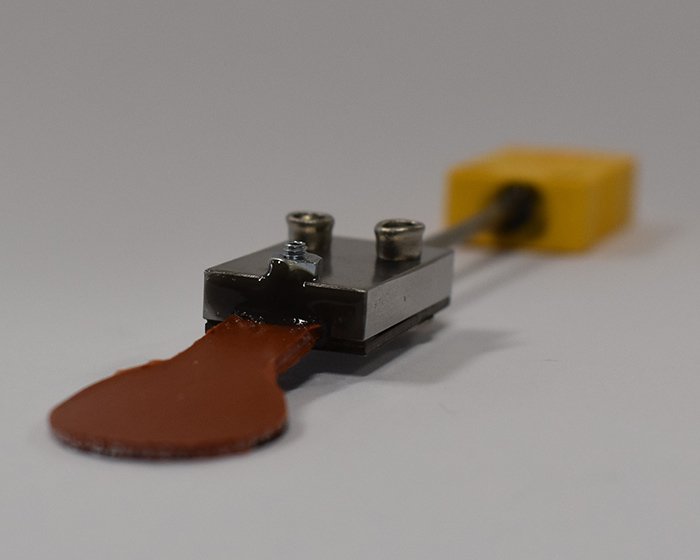

Heat-resistant and flexible pressure-sensitive / vibration sensor

FEATURE

This sensor is not only heat resistance, flexibility and thinness, but also pressure sensitive and vibration sensor that are good responsiveness as a ceramic device.We are working on expanding into the medical/healthcare field by taking advantage of its flexibility and thinness.

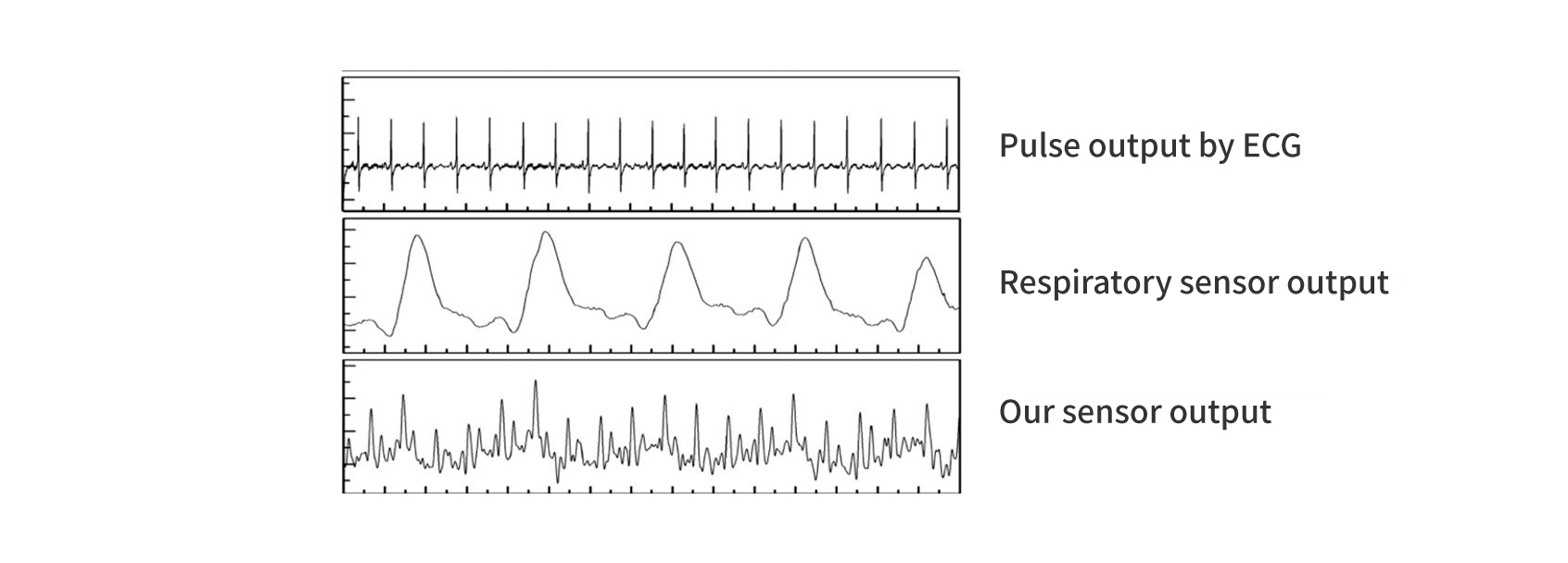

Example of pulse wave acquisition while seated (Comparison with ECG output and respiratory sensor output)

SPEC
Specifications

Model Heat-resistant and flexible pressure-sensitive / vibration sensor
Heat proof temperature 100~600℃
Measurement Frequency 100~103Hz
Measurable parts thickness 1mm
Flex resistance radius 10mm

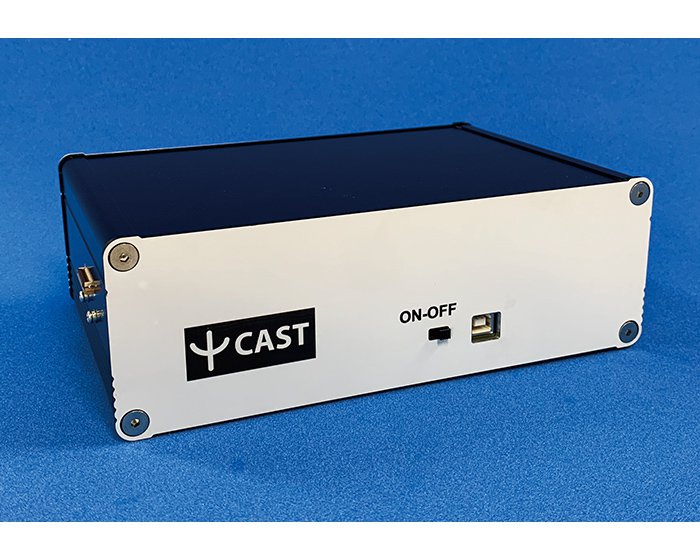

Ultrasonic Pulsar Receiver Unit

SPEC
Specifications

Model Ultrasonic Pulsar Receiver Unit
Number of Measurement Channels 8
Acquisition Waveform Time Length 3~22μs
Center Frequency for Transmission 2~10MHz
Transmission Voltage ±10~±80V
Receive Gain 7.5~55.5db

CONTACT

Please feel free to contact with our division for any questions or concerns you might have about Precision cleaning equipment, Precision spray coating equipment and Piezoelectric Device.
