KAIZEN for Transfer Chuck Error
Improvement of Transfer Finger Chuck Error
Special transfer finger is required to chuck steady without misalignment of large axil and small axil of work.
This is a case of work that is difficult to chuck.
Probleｍ
Works are falling down and punch damage occurs during continuous several hundreds production with fingers that clamps the axle to its center.
Point of Solving the Problem

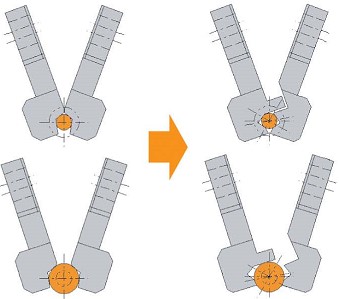

Conventional
Work falls because contact points of fingers are allocated upward.
KAIZEN
Contact points are evenly located to the work center of gravity
Result
After KAIZEN, during several hundreds of continuous production,
①No work falls
②Avoid punch broken
