EAB400R
EAB400R

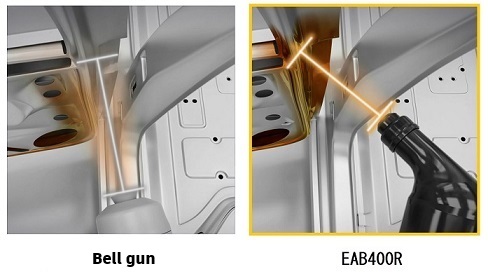

The compact gun head enables close-coating to narrow areas such as the inner plate of automobile doors, improving penetrability and coating efficiency.
The angled gun tip expands the robot’s range of motion and improves vertical access to narrow spaces.
A newly designed nozzle that provides a uniform spray pattern reduces paint consumption and achieves a beautiful finish.
Reduce over spray and switching time by round paint pattern.
This gun suits both flat pattern and round pattern.
Damp valve in gun body incrases flush ability.
This gun does not require paint path insulation and can charge water-based paints efficiently even at low pressure.(EAB400WBR)
| Model | EAB400R | EAB400WBR |
| Max paint pressure | 0.6MPa | |
| Max air pressure | 0.6MPa | |
| Max voltage | DC-60kV | DC-30kV |
| Size(φ×L)(mm) | φ142×362 | φ142×348 |
| Weight | 3.1kg | 3.3kg |
| Electrostatic controller | BPS260(Sold separetely) | |
No.433
May., 2024
Robotic coating of Hydraulic cylinder ⁂ ⁂
- Used paint:
- Liquid paint
Learn more
Introduction : Built a new robotic coating line-in-house to solve issues with quality variations caused by hand spray and the lead time in the outsourced coating process.
Benefits :
1. Coating qualities were stabilized and the rate of defects was greatly reduced by combining with an EAB400R that is angled at the gun tip and allows coating with less robotic motion.
2. By the automation, the burden on workers could be drastically reduced, and the shortening of the lead time was realized.
