PRODUCTS

AQ

Step-up machine for higher added value and higher speed

The popular AQ series has evolved further.
We will further enhance each equipment that can be automated and promote the rationalization of our customers' factories.

AQ

FEATURE

Straight-Pass Transfer System

Adopts a punch clear transfer method that greatly expands the opening amount of fingers.

Assist Saver System

Short products whose transfer timing is difficult to be taken are reliably chucked and transported with the transfer fingers.

PRODUCT

Rivet

Rivet

Through Hole Rivet

Through Hole Rivet

Flange Bolt

Flange Bolt

Trimming Bolt

Trimming Bolt

Ball Joint

Ball Joint

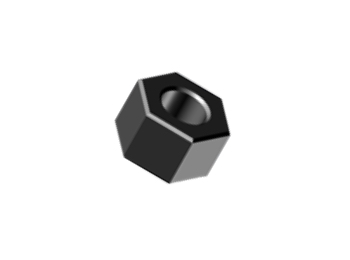

Nut

Nut

SPEC

3Die 3Blow Headers

Specification (Unit) AQ635-3 AQ650-3 AQ675-3 AQ615-3 AQ815-3 AQ1220-3
Forging Step 3 3 3 3 3 3
Max. Cutting Dia. (mm) 7×55 7×70 7×95 7×170 9×175 13×240
KO (mm) 35 50 75 150 150 200
Production Speed (spm) 400 350 330 150 150 120
Specification (Unit) AQ1615-3 AQ1620-3 AQ1625-3 AQ2015-3 AQ2020-3 AQ2025-3
Forging Step 3 3 3 3 3 3
Max. Cutting Dia. (mm) 18×203 18×253 18×305 22×216 22×266 22×316
KO (mm) 150 200 250 150 200 250
Production Speed (spm) 140 120 100 130 110 90

4Die 4Blow Headers

Specification (Unit) AQ1220-4 AQ1225-4 AQ1230-4 AQ1615-4 AQ1620-4
Forging Step 4 4 4 4 4
Max. Cutting Dia. (mm) 18×240 18×300 18×350 22×203 22×253
KO (mm) 200 250 300 150 200
Production Speed (spm) 120 90 75 140 120
Specification (Unit) AQ1625-4 AQ2015-4 AQ2020-4 AQ2025-4
Forging Step 4 4 4 4
Max. Cutting Dia. (mm) 22×305 25×216 25×266 25×316
KO (mm) 250 150 200 250
Production Speed (spm) 100 130 110 90
