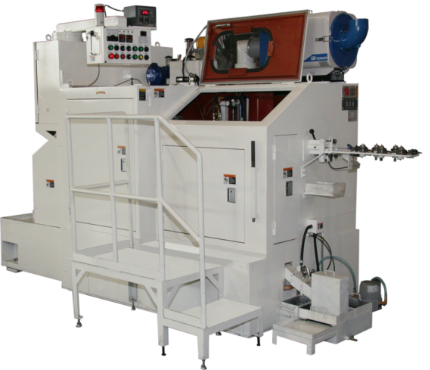

SB

Realization of High-speed Stable Production

SB

FEATURE

Punch Pusher Mechanism

It enables high-speed stable production by using a dedicated rotary cam and driving the punch movement separately from the crank drive.

PRODUCT

SPEC

1Die 1Blow Headers

Specification (Unit) SB3 SB5 SB8 SB11 SB14 SB20
Forging Step 1 1 1 1 1 1
Max. Cutting Dia. (mm) 2.5×5 3.5×8.5 5.7×13 7.7×18 10×24 14×35
KO (mm) 1〜3 2.5〜5 3〜8 5〜11 7.5〜14 10〜20
Production Speed (spm) 1000 1000 800 550 450 350
