EcoDual
EcoDual
Less paint needed
As a result of the high electrification efficiency of the paint and a maximum of 10% improvement in the coating
efficiency compared to conventional products, the effect of reducing the amount of paint used can be expected,
and the amount of correction is further reduced.
In addition, we can expect a reduction in the amount of industrial waste in the case of only blowing away.
Improved finish
While maintaining high charging efficiency, it suppresses the generation of free ions and realizes a smooth
finished surface with less reverse ionization (electrostatic repulsion).
Improved re-coating
The dual electric field reduces reverse ionization (electrostatic repulsion), resulting in a smooth coating even when
recoating.
Reduced coating time
With a maximum discharge rate of approximately 350g/min, more paint can be deposited in a short time,
improving work efficiency.
Expansion of pattern width
From plane to depth, you can select the nozzle that matches the object to be coated and the process,
and the pattern can be changed.
Shorter cleaning time
The seamless construction of the gun body reduces cleaning time.
What is a dual electric field ?
|
Series name |
EcoDual |
|---|---|
| Model | ECDa |
| Flow rate ※1 | Standard usage range：50～350g/min |
| Maximum applied voltage | DC-80kV |
| Maximum current value | 80μA |
| Compatible controller model | BPS900a |
| External dimensions（L×W×H） ※2 | 386×66×69 mm |
| weight ※3 | 496g |
※1 Amount varies depending on injector and powder, hose.
※2 Nozzle and cover are not included.
※3 Nozzle muzzle and gun cable are not included.
OPTION
| Name | Long muzzle【flat】 | ||||
| Appearance |  |
||||
| Type(length) | 150 | 300 | 500 | 700 | 1000 |
| Number | 1608-1 | 1608-3 | 1608-5 | 1608-7 | 1608-10 |
※Nozzle is excluded. Select from Flat and Round nozzle.
| Name | Long muzzle【round】 | ||||
| Appearance |  |
||||
| Type(length) | 150 | 300 | 500 | 700 | 1000 |
| Number | 1609-1 | 1609-3 | 1609-5 | 1609-7 | 1609-10 |
※Nozzle is excluded. Select from Flat and Round nozzle.

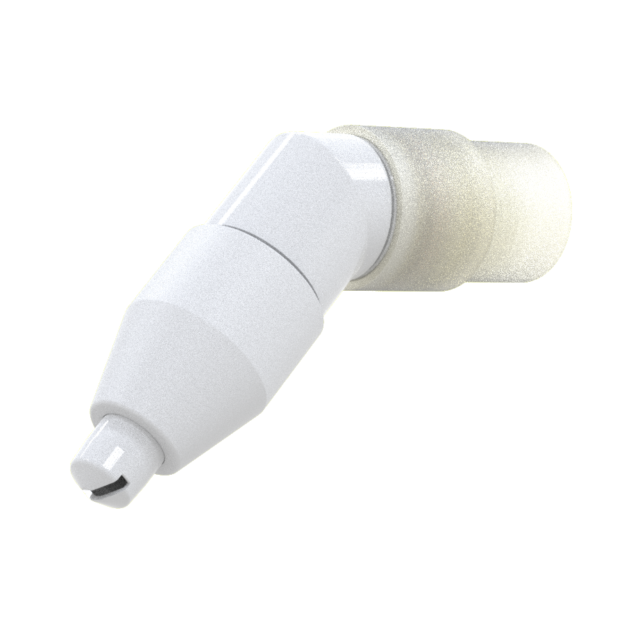

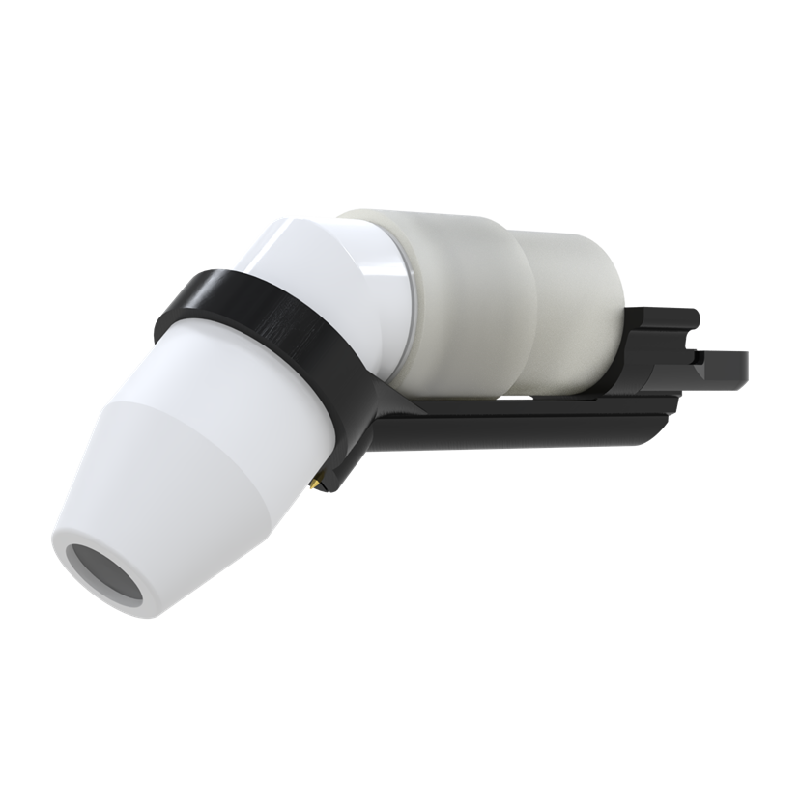

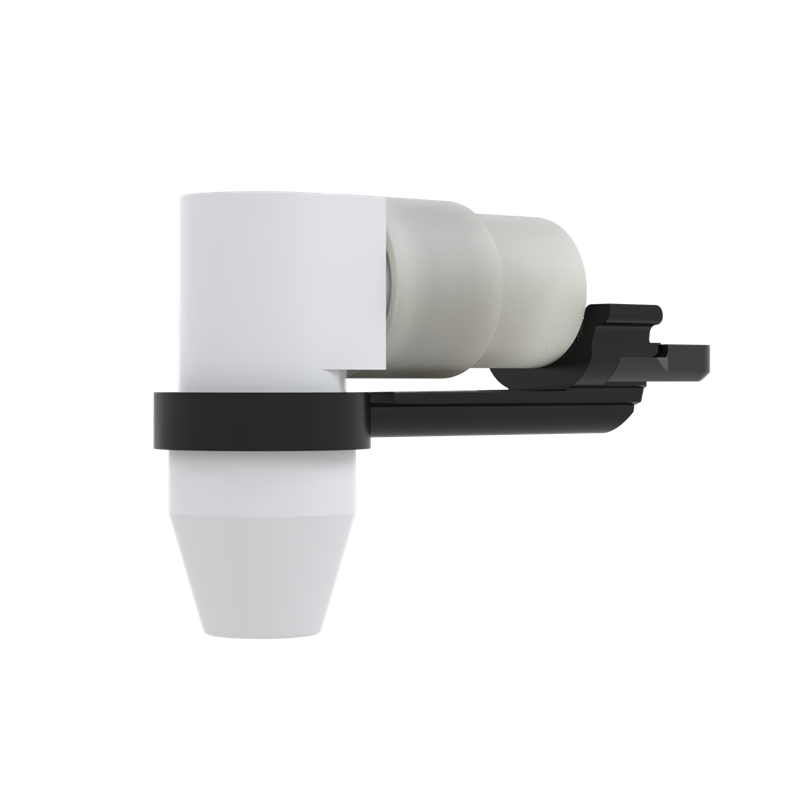

| Name | Angle muzzle | |
| Appearance |  |
 |
| Type | 45° | 90° |
| Number | 1610 | 1611 |
No.440
Dec., 2024
Powder coating of metal products
- Used paint:
- Powder paint
Learn more
Introduction : Due to the increase in orders, improving productivity had become an issue.
Benefits :
1. By updating the equipment and adding more spray guns, the coating area has been expanded. Now it is possible to apply the correct film thickness uniformly to all workpieces.
2. Previously, two people were continuously performing correction work throughout the day, but the frequency of corrections has decreased due to the dual-electric effect, thereby improving productivity.
3. Combined with the paint recovery capacity of the new booth, it is expected that paint usage will be reduced by 10 to 15%.
Return to overview
No.434
Jun., 2024
Powder Coating of Frame for Electric Mobility
- Used paint:
- Powder paint
Learn more
Introduction : Established Japan's first electric mobility OEM factory in Okinawa.
Benefits : The high coating efficiency and excellent finish of the electrostatic powder gun enable the company to achieve its goal of thoroughly reducing environmental impact.
Return to overview
No.423
Apr., 2023
Powder coating for Steel-Rack * *
- Used paint:
- Powder paint
Learn more
Introduction : The company mainly manufactures and sells steel racks for distribution and book storage equipment. Due to the increasing orders for powder finishing and environmental measures, the solvent booth was removed and a powder coating system was introduced.
Benefits :
1. A powder gun that achieves excellent coating efficiency reduces the amount of paint used by about 20%.
2. The waste powder became less than 1% from about 20% of the amount of paint used.
3. The productivity is improved and correction frequency is drastically reduced.
4. The quality has been stabilized by the advance of the automation.
Return to overview
